ABYSS SHRIEK

-----------------------------------------------------------------------------------------
IMPORTANT:

THIS IS A PREORDER. WILL TAKE 3-4 WEEKS. NO REFUNDS WILL BE OFFERED IF ORDERED AND IN PRODUCTION. IF YOU HAVE ANY QUESTIONS FEEL FREE TO CONTACT.
-----------------------------------------------------------------------------------------

Coming soon...

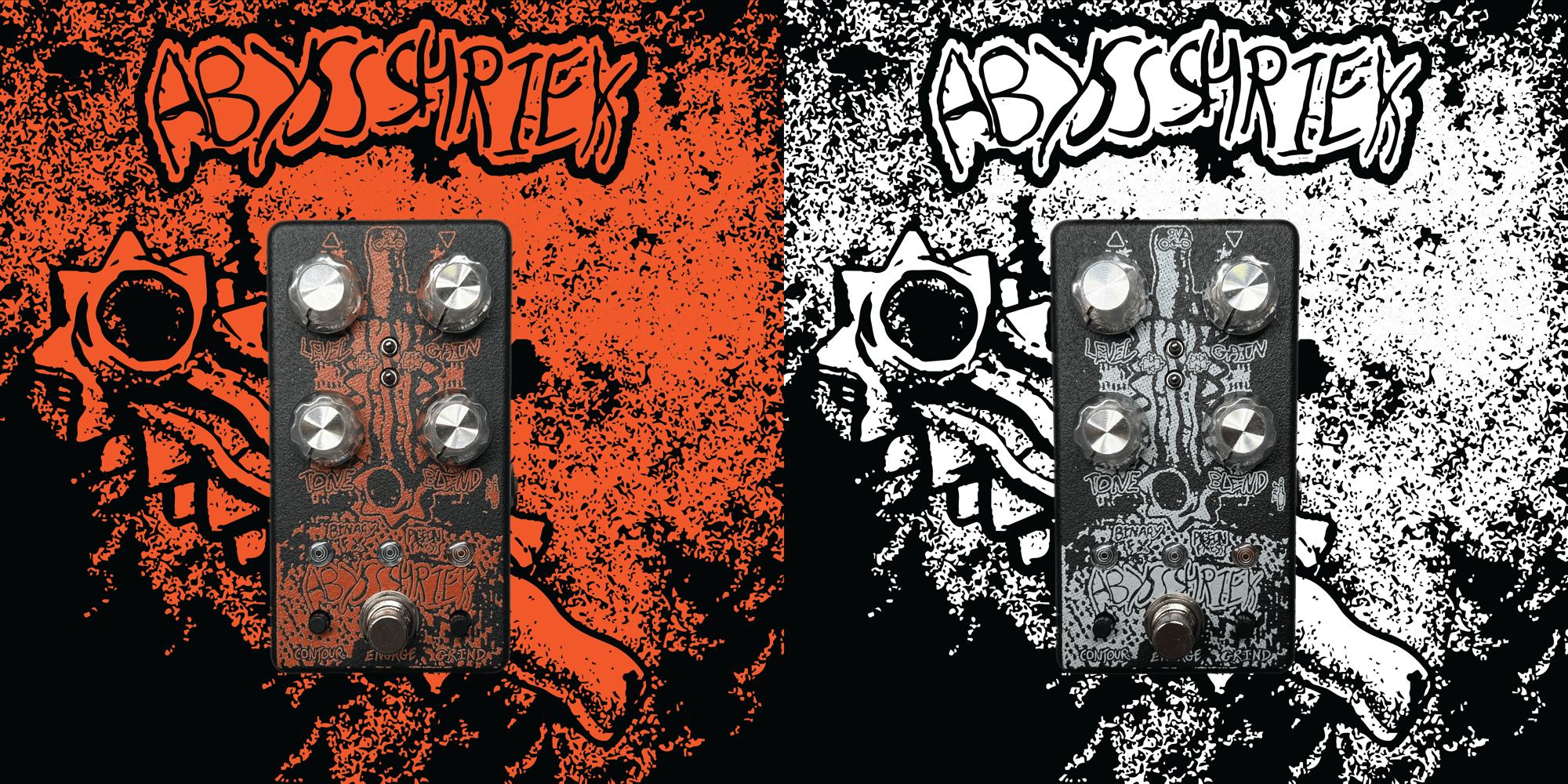

A tube screamer style pedal with switchable HM-2 style EQ, clipping options and a bass response switch to assist with all of your boosting needs. Mainly used to boost high gain amps but can be used as a stand alone overdrive. I love saving space so I thought, lets put all of the features I use in one package.

Controls are as follows:

LEVEL: Controls overall volume.
GAIN: Controls amount of overdrive. Keep it low to boost, high for crunch.
TONE: Tube Screamer tone control. When GRIND feature is on, tone control is taken out.
GRIND: Introduces an HM-2 EQ and clipping section.
BLEND: Blend in how much HM-2 EQ you want in your signal.
CLIP: Top switch is soft clipping, bottom switch is hard clipping (only engaged when GRIND is active). All clipping options are symmetrical LEDs, no clipping, or asymmetrical silicon.
CONTOUR: Toggles between 2 bass options. When LED is lit, is the more "thin" option, when LED is off, it's stock.
ENGAGE: Turn overall effect on/off.

Side jack accepts a TRS (stereo cable) controller or an "FS3X" type controller (3 button). WILL NOT WORK WITH TS MONO CABLE. You can purchase with the pedal or make your own. Controller is housed in a 1590A enclosure, 3 button controller will be housed in a 125b.

True bypass relay switching with latching and momentary bypass. All switches have latching and momentary functions.

Top mounted input/output jacks.

UV printed, powder coated enclosure.

9 volt power ONLY (100mA minimum). Do not run at higher voltages!

Thank you for looking!
